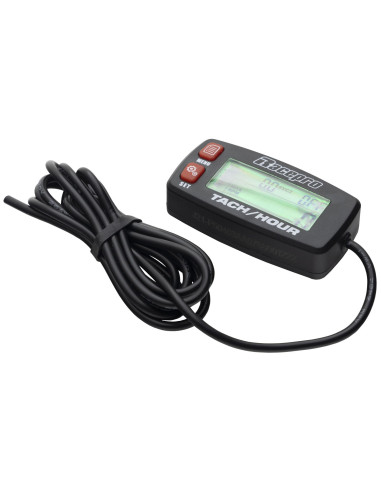

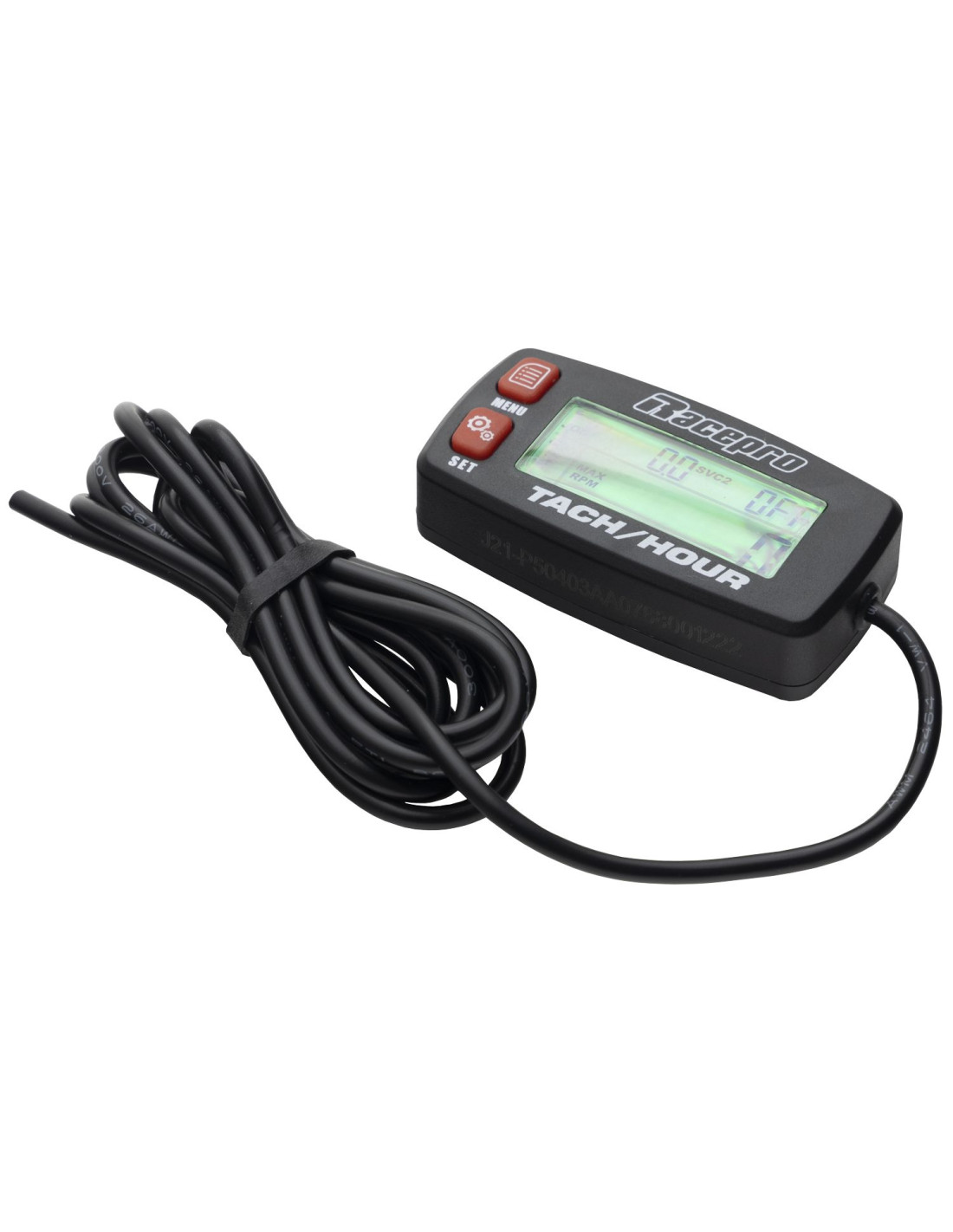

EVO Racepro Wired Hour and RPM Counter BLACK

RacePro is proud to introduce the new RS313004BK self-powered digital tachometer/maintenance/hour meter. It is compatible with most 2-stroke and 4-stroke gasoline engines. It features a powerful timing system, an RPM measurement system, and several unique functions. The timing system includes Total Hours (TOT): accumulating the total operating hours, with a maximum value of 99,999 hours. Job Time (JOB): the operating time since the timer was reset, with a range of 99,999 hours, etc. The RPM measurement system includes: Option to select 4 measurement ranges: r1, r2, r3, r4. Selecting the correct measurement range will ensure more accurate engine RPM data. It can be programmed for different engine firing patterns and offers 9 types of race configurations. It displays the maximum RPM recorded during the last operating period. When the set value is exceeded, the RPM alert will flash as a reminder. The tachometer displays from 0 to 25,000 RPM with a resolution of 10 RPM. RPM update rate: 0.5 seconds. RPM alert: when the engine RPM exceeds the set value during operation, the meter will sound an alarm. Unique design: 24-hour clock. SVC Group: SVC/SVC2, maintenance interval, 3 backlight modes: L-AUTO; L-ON: Always On; L-OFF: Off. Backlight color: Green/Red (warning), etc. Furthermore, the products are CE and RoHS certified. About this product: • MULTIFUNCTIONAL TIMER: Includes tachometer (RPM), hour meter, service timers (SVC and SVC2), resettable job timer (JOB); Convenient for viewing data, helps maintain the engine in good condition. • HOUR METER: Helps monitor engine operating hours. When the engine is off, the display shows the total engine running time and remains visible; the TOT (Total Operating Hours) are displayed with a resolution of 0.1H = 6 minutes. When the total hours exceed 9999.9H, the hour resolution will be 0.1H = 1 hour and cannot be reset. It allows the user to preset the initial total hours to replace the old meter. • MAINTENANCE WARNING: Scheduled Service Interval Timer (SVC and SVC2), Service Warning Timer (countdown). When the SVC intervals are reached, the warning icon will flash and the backlight will turn red. The operating time, used to measure the interval between maintenance, such as oil changes, air filter replacements, etc., can be reset. WORK and SVC readings can be viewed directly through the navigation screens. • TACHOMETER: Accurately records the RPM value when the engine is running, helping to adjust the engine idle; different engine firing patterns can be programmed; programmable RPM alert, red backlight display, and flashing warning icon; records and reminds the engine's MAXIMUM RPM; programmable RPM measurement range selection mode for greater RPM data accuracy. • OTHER: Easy to install; includes detailed operating instructions; programmable green backlight mode; replaceable battery; data retained after power-off; waterproof: IP65; CE and RoHS certified.
