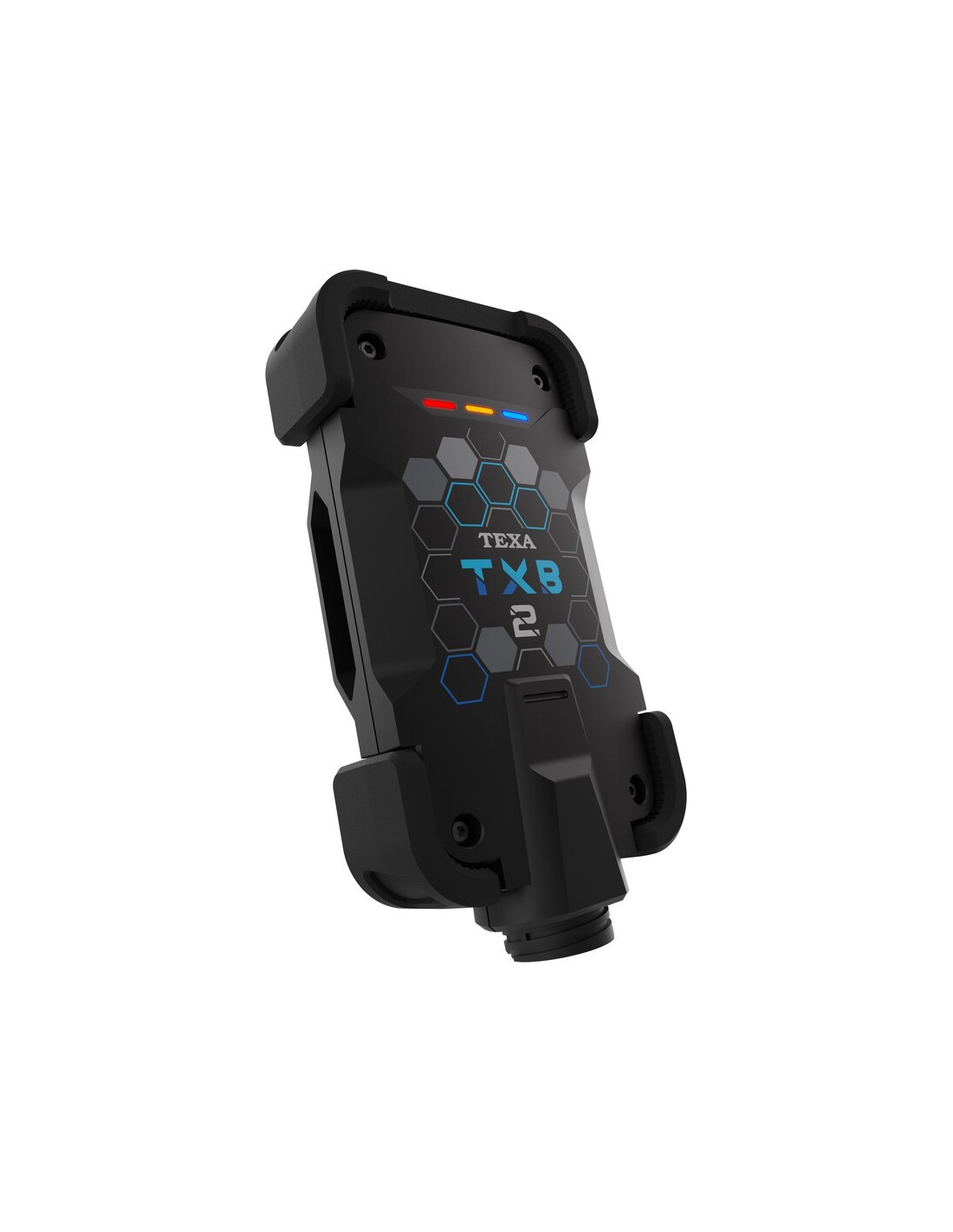

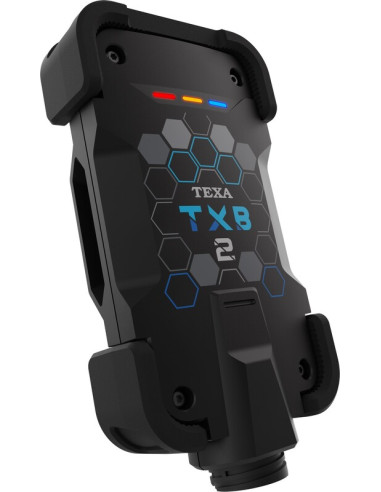

TEXA Navigator TXB 2 Diagnostic Machine (IDC5 Software Included)

NAVIGATOR TXB 2

NAVIGATOR TXB 2 is a next-generation vehicle interface, developed specifically for the BIKE and MARINE environment.

Thanks to the powerful Cortex®-M7 processor (550 MHz, 1 MB flash, 564 KB RAM), Navigator TXB 2 is even faster and more powerful than its predecessor, TXB Evolution, enabling rapid and accurate processing of ECU data, even in PassThru mode.

New connections

The new Bluetooth® 5.0 module and USB-C port ensure faster connections and optimized data downloads, as well as improved ease of use thanks to the RGB LEDs. Navigator TXB 2 supports all current protocols, including PassThru and CAN FD. The integrated 16-pin CPC connector also allows the use of all BIKE and MARINE diagnostic cables. In addition to "classic" diagnostics, it also allows for recording diagnostic sessions on the fly*.

*For on-the-go diagnostic tests, please read carefully and observe the requirements at: www.texa.com/test-drive.

An inseparable partner

IDC5 is TEXA's exclusive diagnostic software for managing all the operations typically performed in a workshop.

Designed for the specific BIKE and MARINE environments, where TEXA is a leader, it allows you to perform all the essential operations for the repair technician, including self-diagnosis to read and clear errors, view engineering parameters and ECU status, activate, adjust, and configure on-vehicle devices, turn off warning lights, configure ECUs, adjust carburetor and injection timing, and program keys.

Thanks to the global network built over more than 20 years in the market, IDC5 can guarantee extraordinary coverage of the current vehicle fleet.

A thorough diagnosis

IDC5 offers a series of extremely sophisticated and useful functions, such as Global Scan, which scans the vehicle to detect installed control units and the presence or absence of errors, or Freeze Frame, which displays a series of parameters and data indicating the vehicle's status when a fault occurs.

Technical Specifications:

Processor:

CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB FLASH, 564KB RAM

SRAM Memory: 16 MBits organized in 1024K x 16 bits

SDRAM Memory: 256 MBits organized in 4096K x 4 banks x 16 bits

eMMC Memory: 8 GB on an 8-bit bus

Vehicle Battery: 12 V and 24 V system management

External Power Supply: 12 ÷ 24 V

USB Communication: 2.0 high-speed 5 V / 500 mA

Wireless Connection: Bluetooth 5.0 class 1

Operating Band: 2402 ÷ 2480 MHz

Maximum Transmitted RF Power: 10 dBm

Electronic Switch: 2-way 13 independent positions

Diagnostic connector: CPC 16 poly

Supported protocols:

Blink codes: K, L (with 100 mA current protection), ISO9141-2, ISO14230

FD CAN 11898-2:2016 2 channels

CAN ISO 11898-3 low speed

CAN SAE J2411 Single Wire

SAE J1850 PWM

SAE J1850 VPW

SAE J1708

RS232

Visual alerts: LEDs: RGB x3

Consumption at 12 V: 300 mA

Consumption at 24 V: 100 mA

Operating temperature: 0 ÷ 50 °C

Storage temperature: – 20 ÷ 60 °C

Operating and operating humidity: 10 to 80% without Condensation

Directives:

DER 2014/53/EU

RoHS 2011/65/EU and Delegated Directive 2015/863/EU

Safety:

EN 62368-1

EN 62311

Electromagnetic Compatibility:

EN 301 489-1

EN 301 489-17

Radio Systems: EN 300 328

Weight: 215 g

Note: Axone Nemo Light tablet NOT INCLUDED.
